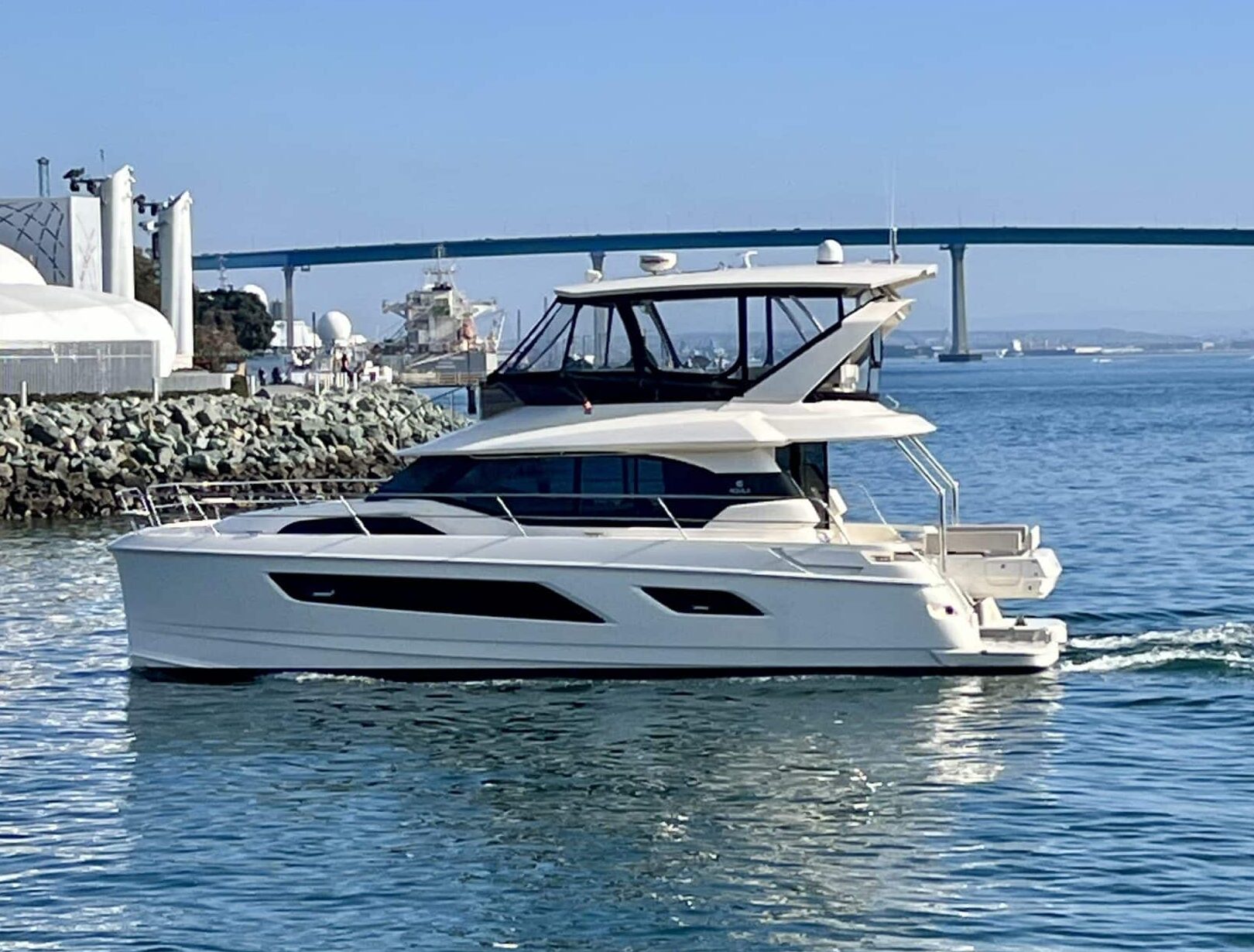

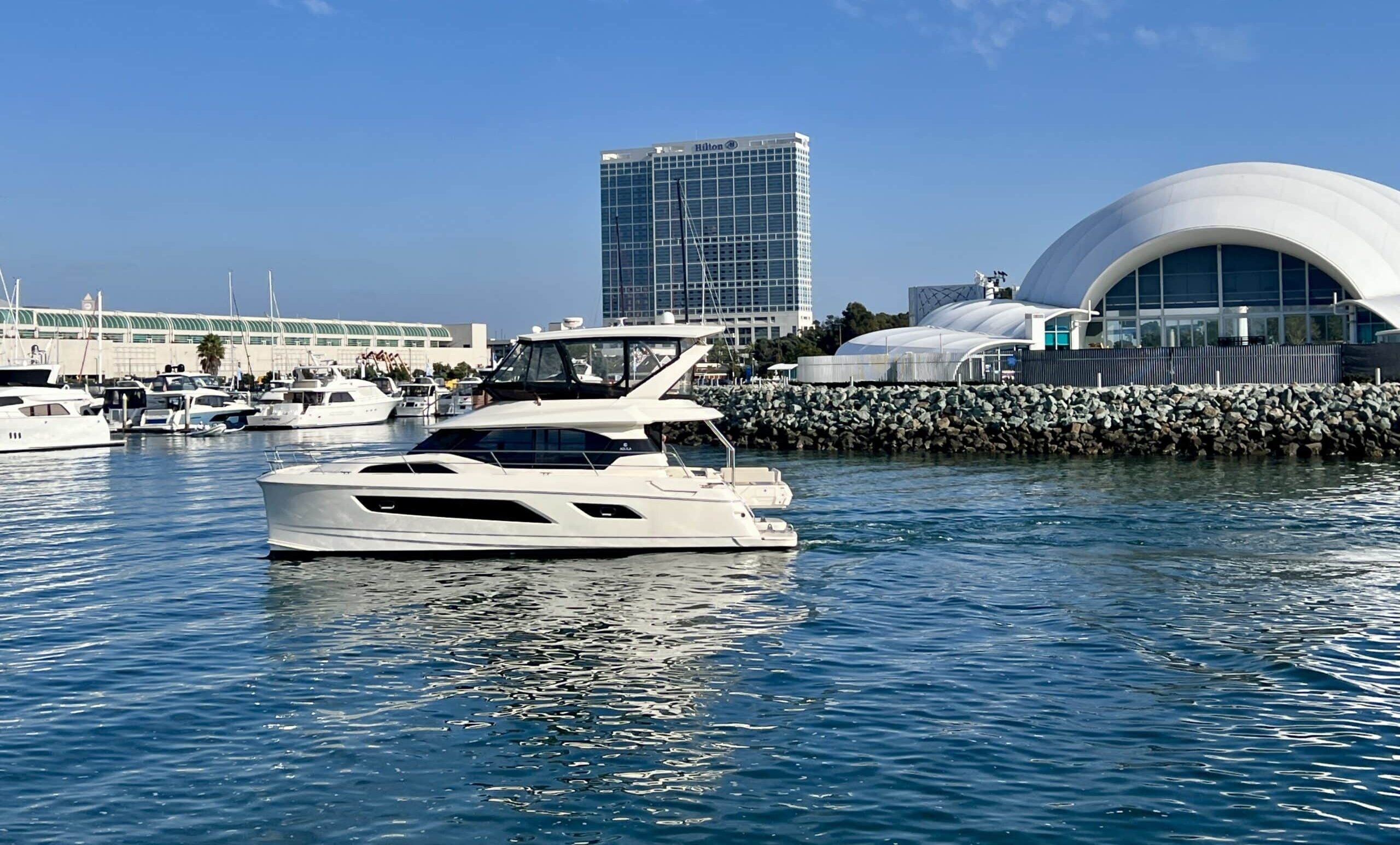

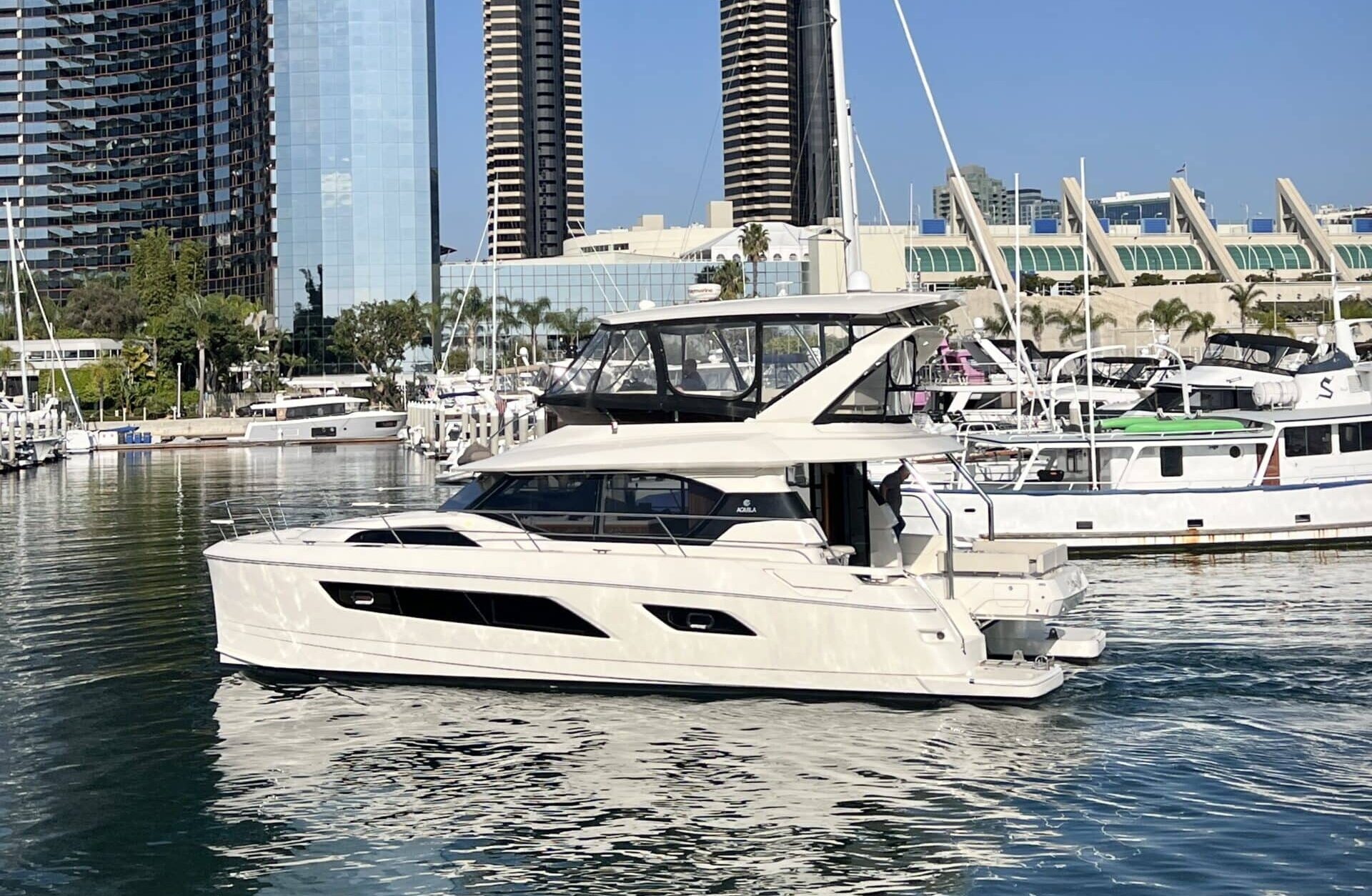

2017 AQUILA 44 POWER CATAMARAN

RECENT UPGRADES

Fresh Pettit Bottom Paint (12/15/2023)

New Tides Sure Drip-Less Shaft Seals (12/15/2023)

New Fly Bridge Polycarbonate Eisen Glass (11/1/2023)

New SeaBlaze Underwater Lights (12/15/2023)

New Ritchie Flush Mount Compass (11/1/2023)

CONSTRUCTION

Resin-infused hull and deck construction creating high strength and stiffness

Solid FRP lamination at hull centerlines including all through hulls

Vinylester resin with excellent corrosive and water-resistant properties

NPG gelcoat with superior UV resistance

Resin infused bulkheads

All main FRP components resin infused construction including bulkheads

Bow crash box in each hull

Bulbous bows separately molded and attached to each bow to improve fuel efficiency, speed, and stability

Hull stern extensions separately molded and attached for safety

Windows in hull and deck high quality tempered shatterproof glass meeting ISO standards

Custom-built salon and flybridge support structure using composite structure

HULL AND DECK FEATURES

Opening deck hatches (8) (carefully positioned to enhance ventilation in cabins)

Opening ports in hull windows for heads (3)

Opening ports in forward salon windows (4)

Opening ports in hull windows for office area starboard (1)

Custom-built PVS rub-rail with 316 stainless steel insert offering all-round protections

Solace custom deck railing in 316 stainless steel

2x comfortable and protected bow seats integrated into deck railing

8x mooring cleats in solid 316 polished stainless steel thru-bolted

Deck fill plates in 316 stainless steel- 2x water – 2x water – 3x waste

Bow roller for secondary anchor – 316 stainless steel

Anchor locker with 1500-watt windlass; handheld remote control with custom chain lock

Well-placed ergonomic handrails in 316 stainless steel ensuring secure movement onboard

Forward access steps from flybridge to bow with 316 polished stainless steel support structure

Ergonomic transom steps for easy boarding and comfortable lounging off stern

LED navigation lights – port, starboard, stern, anchor & running light

Engine ventilation intakes with FRP cowling and cover

Swim ladder – 316 stainless steel

Large starboard bow locker – Waterproof and easy lift gas hinge for fender storage

Dedicated port bow locker – Waterproof and easy lift gas hinge for freshwater system and optional water maker

Self-draining storage locker in aft cockpit floor

Aft cockpit, flybridge, and side decks all self-draining

Aft cockpit bar area with 2x 316 stainless steel bar stools

Engine access lockers with easy lift gas hinge allowing easy access to engine room

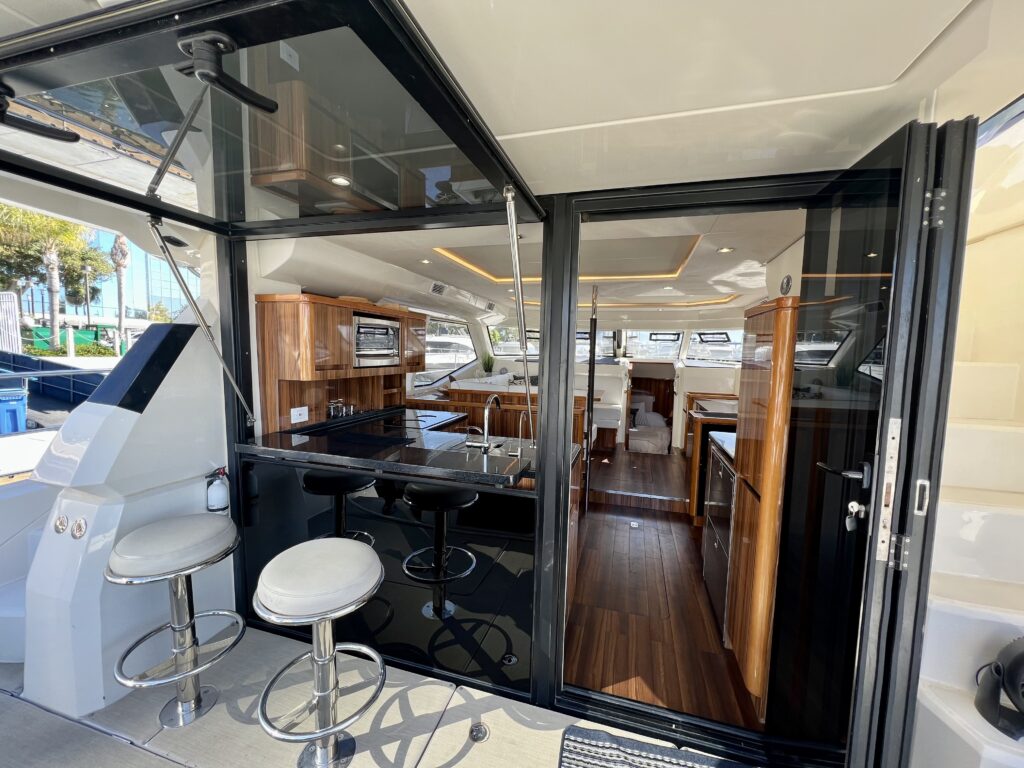

Aft cockpit with expansive hinging window and door opening to galley

Aft cockpit seating with U-shaped settee with integrated cup holders, cooler box and table (converts into sunbathing area)

Integrated aft side boarding step in hull with 316 stainless steel handrail

Large spacious foredeck for sunbathing

LED downlighting in aft cockpit

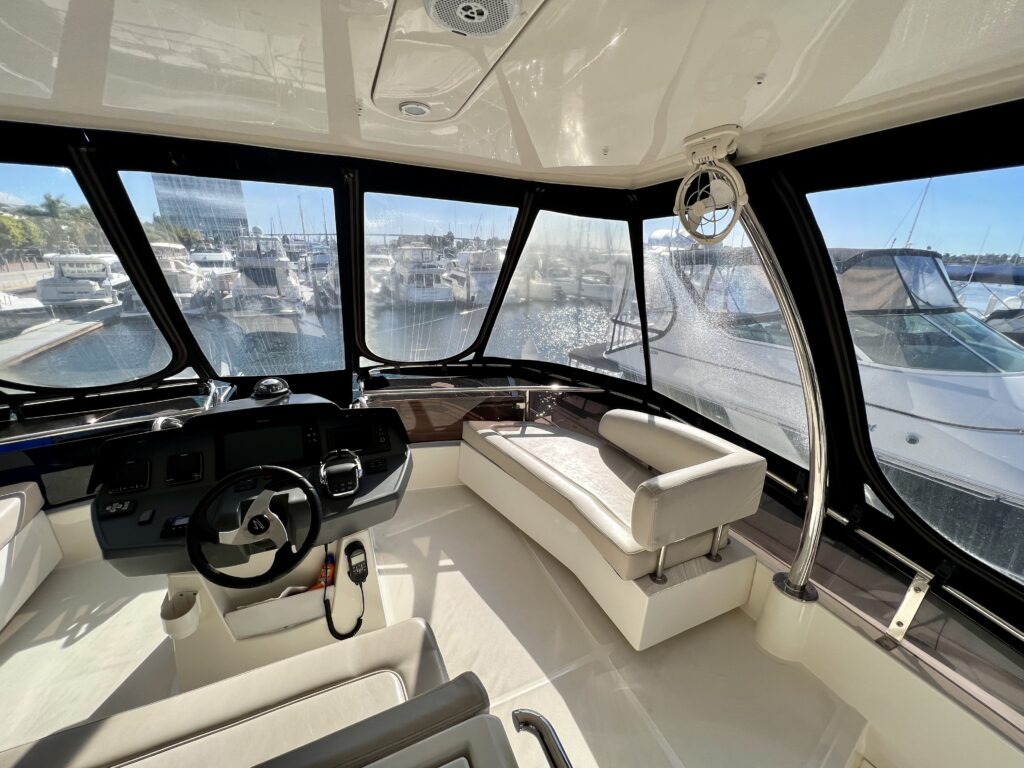

FLYBRIDGE

Radar arch across flybridge

Access to flybridge from aft stairway and forward bow steps

Main access from aft cockpit via integrated molded steps

Ergonomic positioned handrail for safe access from aft cockpit

Forward flybridge access via center forward bow steps

Ergonomic positioned handrail for safe access via forward stairway

Flybridge guardrails with acrylic wind protection inserts

Electronic engine double lever throttle and gearshift control

Variable position steering wheel

Hydraulic Steering

Helm stations console in dark grey non-glare UV protect finish

Compass at helm station

Entertainment system remote control located next to helm

Marine waterproof speakers located in hardtop

Dark acrylic windscreen with 316 stainless steel handrail support to deflect wind and glare

Spacious comfortable hem seat for 3 people with upholstered seat and backrest

Comfortable port side seating adjacent to helm station

Flybridge table with fold-down extensions comfortably seating six people

Upholstered flybridge cushions with backrest

Wet bar located behind helm station incorporating Corian work surface, sink with hot and cold faucet

Integrated hinged fiberglass cover for wet bar area

Large storage area under wet bar with 2 x access doors

Dedicated life raft storage locker under aft seat with easy launch

Lifejacket and safety gear storage under flybridge seats

7x cup holders located in various areas around flybridge

ENGINE ROOM

Underwater engine exhaust to reduce engine emission noise

Automatic fire suppression heat-activated system with alarm monitors at helm station

Electronic start/stop switches at helm station with E key protection

Engine room insulation – 50mm flame-retardant polyurethane foam covered with metalized polyester film

316 stainless steel engine support frame

Engine room lighting

Automatic electric bilge pump in each engine room with warning light at helm and navigation station

Excellent all round engine and systems access for ease of maintenance

2x hydraulic cylinders

ENGINE CONTROL

Electronic engine double lever throttle and gearshift control

Volvo electronic vessel control EVC 4’’ display at helm station

Electronic start/stop switches at helm station with E key protection

UNDERWATER GEAR

Engine V Drive transmission for compact efficiency

Propeller tunnels for reduced draft and maximum efficiency

20 inch/500mm 4 blade bronze propeller

Propeller shaft – 1.38 inch/35mm machined stainless steel

Rudders and tiller arm in 316 stainless steel with FRP tube

Shut off valves on all saltwater intakes in engine room

Sea water strainers with transparent lid

Watertight self-aligning dripless shaft seal with 316 stainless steel housing and self-aligning Teflon bearing

Extended bronze P bracket for maximum propeller protection

Sacrificial skeg forward of drive train

TECHNICAL FEATURES

Bilge pump warning lights at helm & nav station

Instrument panels

Steering, hydraulic

Steering, tilt wheel

Steering wheel

SALON

Excellent all round visibility from salon seating

Shatterproof windows with external overhangs offer excellent visibility and reduced direct sunlight

Tempered glass hinged door and window access to cockpit offers excellent ventilation and through flow

Opening port lights in forward salon windows provide excellent ventilation (4)

Custom blinds fitted on salon windows

Overhead LED ceiling lights, LED mood lighting and LED courtesy lighting

1x reading lamp

Panel ceilings with decorative wood trim and LED accent lighting

Cabinets and counter top on starboard side

Settee seating U shape around salon table seats 6

Salon table

Large shelves behind settees

Upholstered cushions

Bar for storage of bottles & glasses

Surround sound entertainment system

Salon converts into 1x comfortable single bed

Vertical 316 stainless steel handrail in salon

Synthetic wear resistant flooring offering maintenance free natural wood look

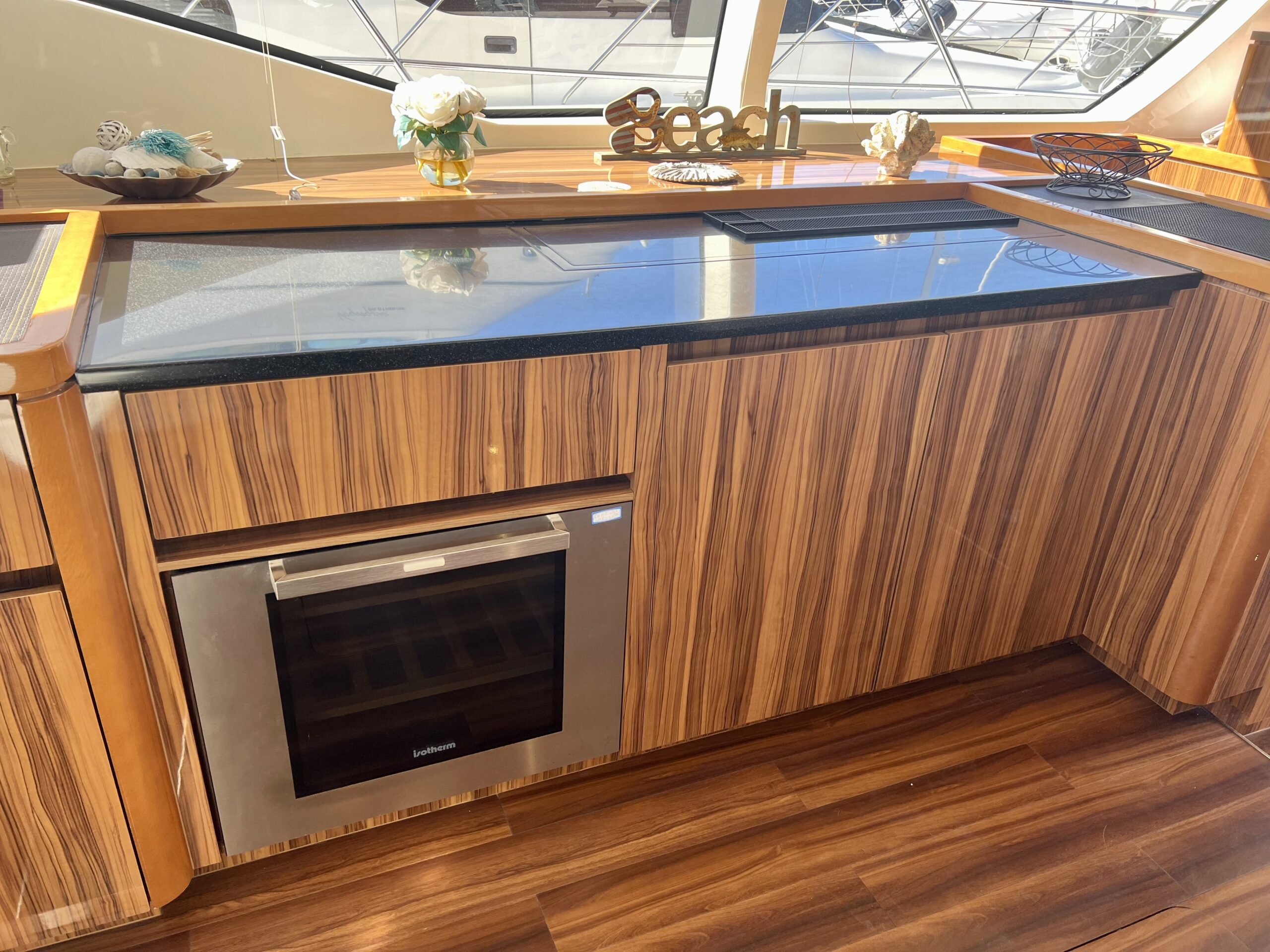

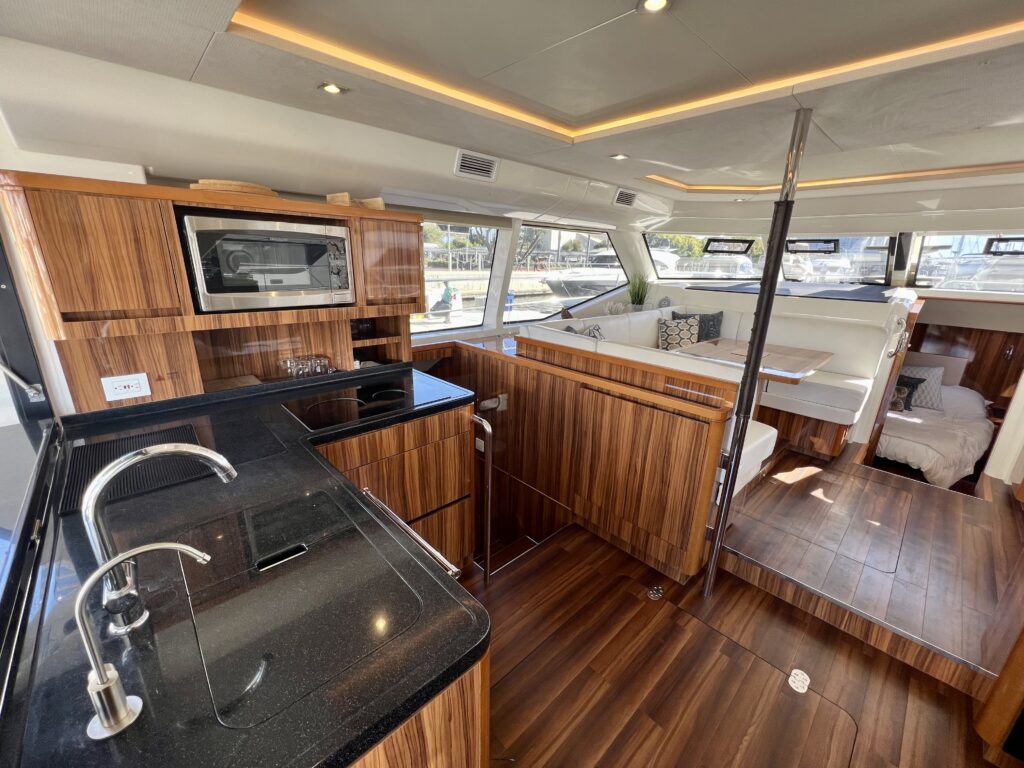

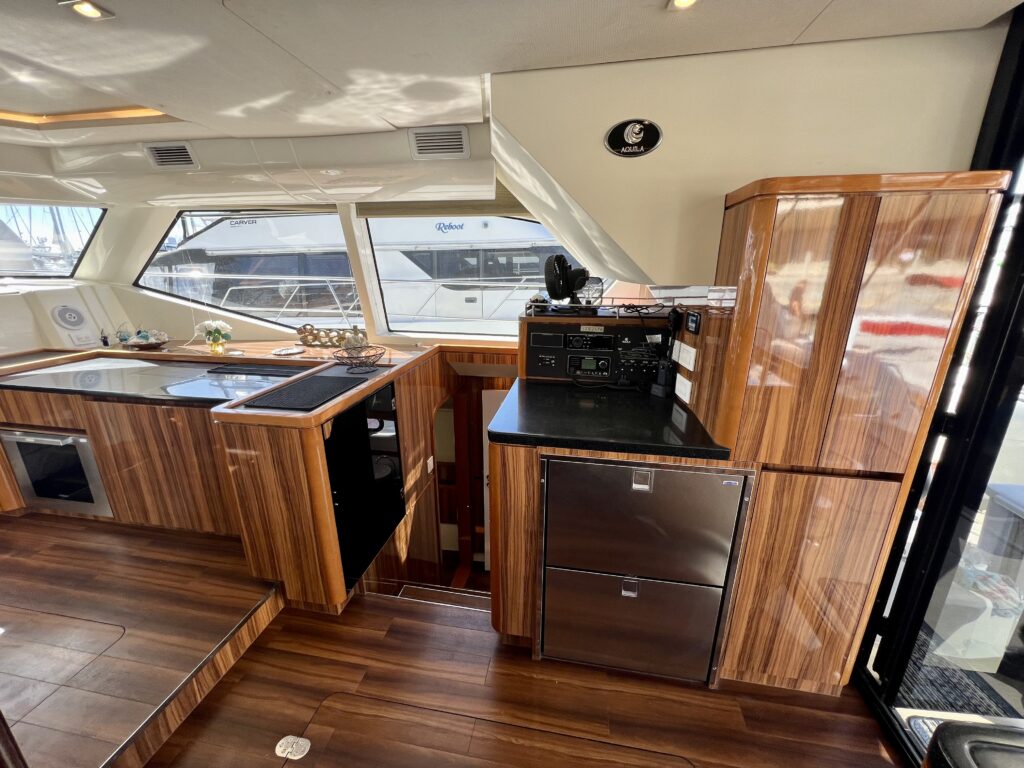

GALLEY

3 burner induction cook top

Microwave

Refrigerator / Freezer 2 drawer front access offering easy access and efficient packing

Double stainless steel sink with Corian worktop cover and single lever variable temperature faucet

Storage cupboards & drawers offering ample storage for all galley accessories

Deep dish drying rack with Corian worktop cover

Durable stain-resistant Corian countertop

Ample storage lockers on starboard side under Corian worktop surface perfect for serving area

Slide out garbage bin under sink

Dedicated blender & coffee maker area

Overhead LED ceiling lights as well as mood lighting

LED Courtesy floor lighting

Synthetic wear-resistant flooring offering maintenance-free natural wood

STATEROOMS

Large windows offering excellent view

Dedicated hanging lockers

Ample storage lockers

Custom blinds fitted on cabin hull windows

Concealed shade blind and insect screen on opening deck hatch where installed

Overhead LED ceiling lighting and floor courtesy lighting

Overhead LED reading lights

Island style beds in all staterooms

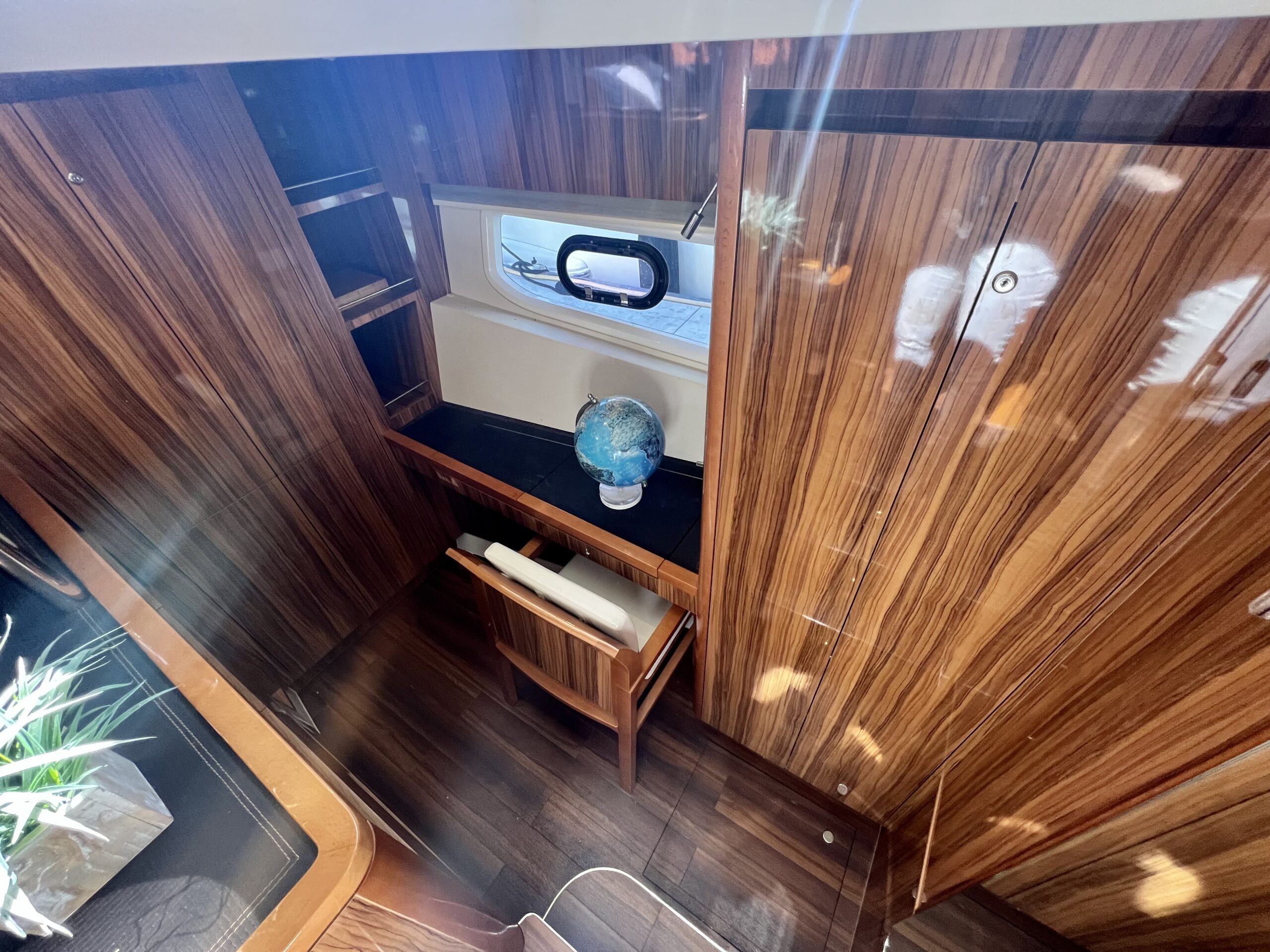

Large desk area with ample storage located in forward master cabin on starboard side

Ample storage lockers under beds

Memory foam mattresses

Synthetic wear resistant flooring offering maintenance free natural wood look

Cabin door offering quiet and privacy

Cabin Mattress Sizes: Forward Master = 71’’W x 79’’L
Aft stbd & Port = 59’’W x 79’’L

HEADS AND SEPARATE SHOWER STALLS

Quiet electric fresh water flush toilet with large bowl and push button control

Private door leading into cabin

Opening deck hatch offering ample ventilation

Opening port light in large window

Stylish round wash basin with single lever variable temperature faucet

Corian countertop surrounding wash basin

Custom wood blinds

Vanity lockers with mirrors

Synthetic wear-resistant flooring offering maintenance-free natural wood look

Separate shower stall with seat and flexible shower faucet

Acrylic door separating shower from the rest of the bathroom

Automatic shower & sink drain via dedicated sealed sump box

Overhead LED lighting

Toilet roll holder located in sink locker

NAVIGATION AREA

AC/DC electrical panel with circuit breakers and transfer switches for all electrical systems – Inc ample spare breaker

Dedicated service panel for optional generator, desalinator, and inverter control panels

Dedicated electronics display panel offering easy access and visibility to electronic systems inc optional VHF radio

Multi-zone entertainment system master unit offering multi-zone control with dedicated iPod/iPhone app connection

Electronic panel displaying navigation lights and bilge pump warning lights and manual switches

Light switch panel controlling all salon, galley and aft cockpit lighting

Remote battery switches for all batteries at service panel

WATER SYSTEM

Fresh water pressure pump with accumulator tank offering equal water pressure throughout

Backup fresh water pump

2x 16 Gal/60L hot water cylinders powered by engine hear exchangers and AC power

2x 10 Gal/390L connected water tanks

Cockpit shower, hot and cold water

Water Tank Level Gauges located on service panel

WASTE SYSTEM

Grey water from showers and sinks collected in 3 x sealed sump box’s and automatically discharged over-board

3x 21 Gal/ 80L black water holding tanks discharged via deck pump out or gravity drain

Black water tank level gauges located at service station panel

ELECTRICAL

House batteries 4x 200Amp/Hour AGM technology in dedicated battery locker

Dedicate4d engine batteries 2x 200Amp/Hour AGM technology

AC power supplied by 2x 50 Amp 125/250V shore power cables

Dedicated circuit breaker switches for all high load components

Galvanic isolator protector system

Shore side electrical system

FUEL SYSTEM

Diesel fuel system with Racor water separation filters

Dedicated fuel tank 145 Gal/550L for each engine

Fuel filters

Aluminum fuel tanks with safety shut Off valves and level monitors at helm station

SAFETY

2x tempered glass escape hatches located under cabin stairs with emergence escape hammer

Automatic fire suppression heat-activated system with alarm monitors at helm station

2x automatic engine room fire extinguishers

Emergency hammers

Emergency steering position with custom emergency tiller in 316 stainless steel

Dedicated bow crash boxes in each hull

Dedicated aft hull extensions double as crash boxes for each hull All deck hatches fitted with latches and waterproof.
